Model KWIK-CON Series
Kwik-Con™ Conduit Assembly
Chronomite® Kwik-Con™ connection system is a fast, easy solution to wire CM and CMI Series electric tankless water heaters. With Kwik-Con, the correct wiring gauge is selected for you and all you have to do is connect the wires using two simple tools.
THE KWIK-CON BENEFITS:
- Correct gauge wire for proper installation
- Works with CM and CMI tankless water heaters
- Installation only requires a screwdriver and pliers
- Speeds installation time, lowering cost
- Approved of concealed or exposed installations
- Lightweight exterior rated for 600 Volts
- Solid copper THHN/THWN insulated single conductors with a green insulated copper grounding conductor
- 8 inch (203.2 mm) conductor leads with 1/2 inch (12.7 mm) insulation stripped
- Color coded conductors
- Easy to connect wire-to-wire, using supplied wire nuts
- Connect to standard single gang outlet box using supplied wall-plate
- Available in metallic or non-metallic versions
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Conduit Assembly for CM or CMI Point-of-Use Chronomite Electric Heater | 549 KB | |||
| | Chronomite® Kwik-Con™ connection system is a fast, easy solution to wire CM and CMI series tankless electric water heaters. | 0 | 1 MB |
Models
Kwik-Con™ ConduitsShown with CM and CMI HeatersSpecify Kwik-Con Metallic or Non-Metallic on the specific heater you order
C12, C10, C8 Metallic Clad Cable with CM Heater
C-NM12, C-NM10, C-NM8Non-Metalic Cable with CM Heater

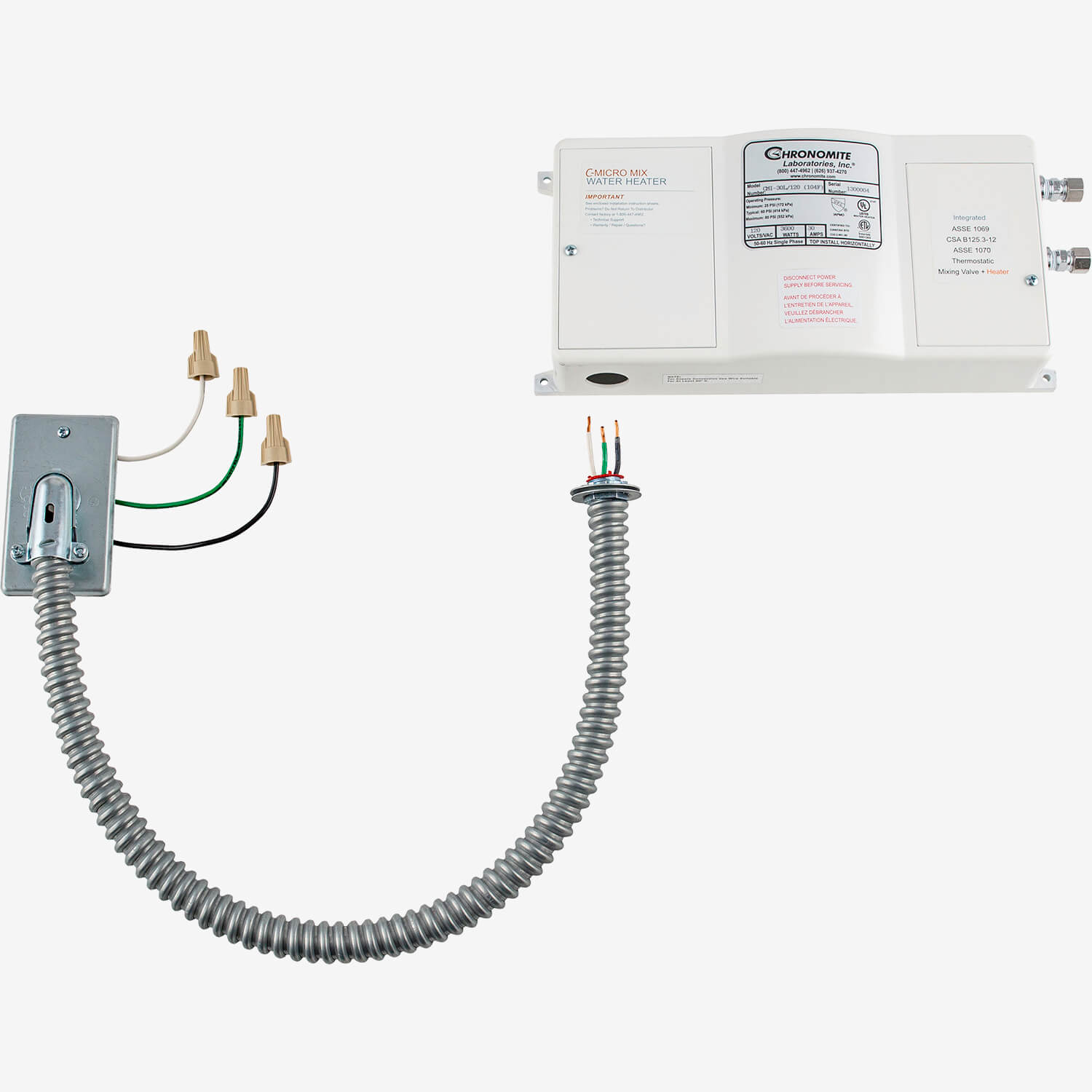

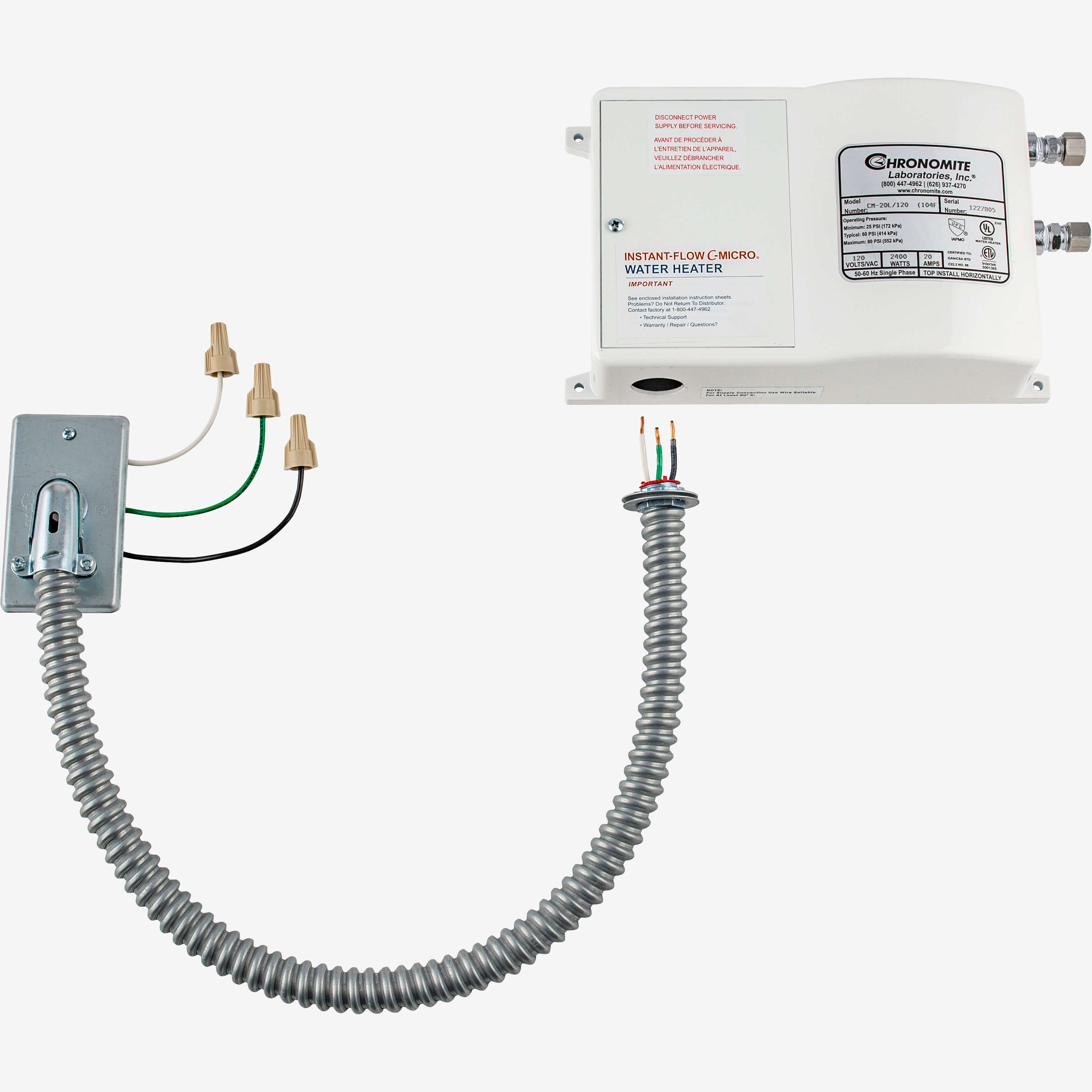

C12, C10, C8 Metallic Clad Cable with CMI Heater

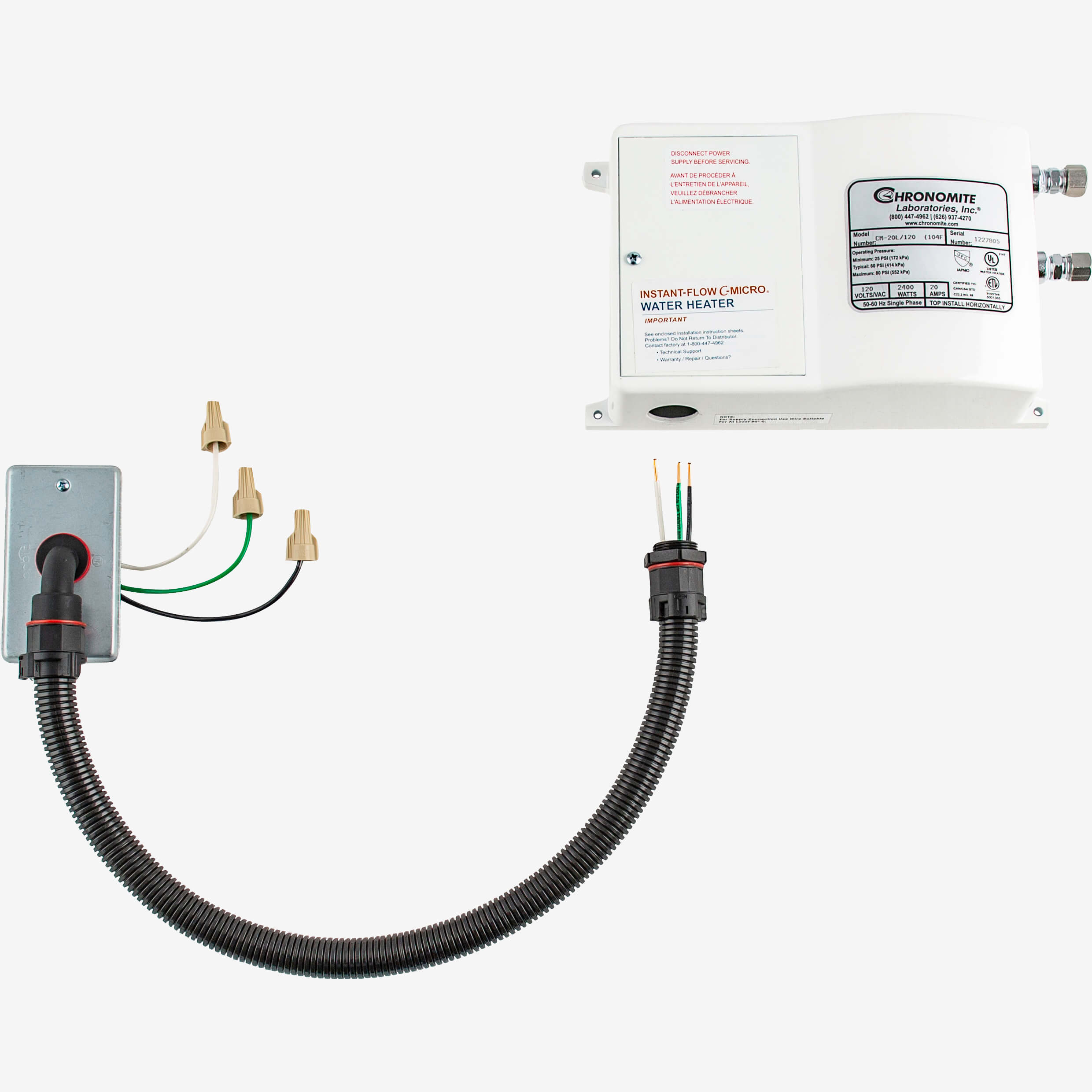

C-NM12, C-NM10, C-NM8Non-Metalic Cablewith CMI Heater
Details

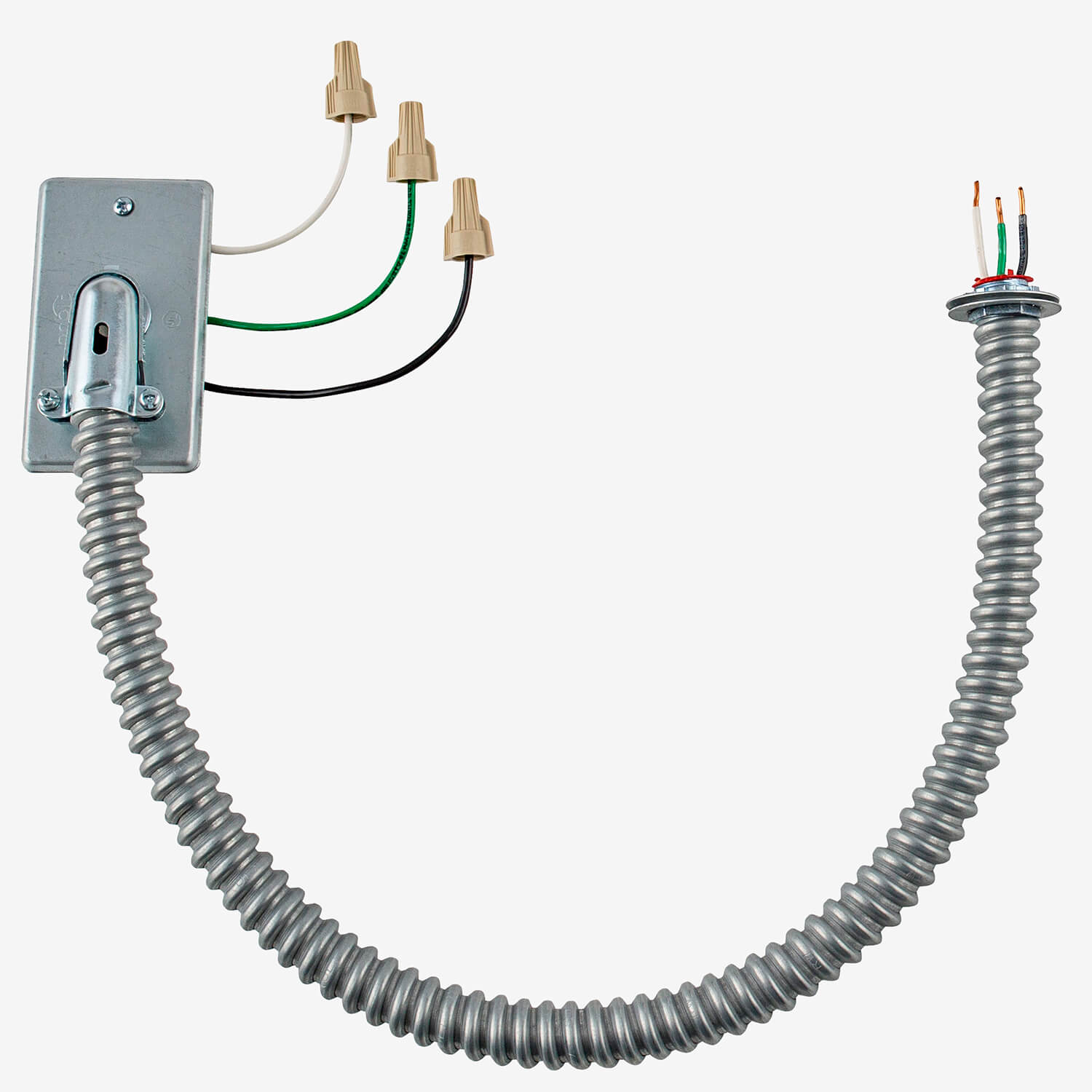

Metallic Assembly (C8, C10, C12)
- Rated for 600 Volts
- 2 foot (609.6 mm) length type MC cable with factory-installed zinc-die cast fittings
- Aluminum interlocked armor
- Rated for 600 Volts
- 2 foot (609.6 mm) length with factory-installed fittings
- PA6 UL 94-VO material
- Protection Class IP68, IP66
