Instant-Flow® C-Micro® Point-of-Use Thermostatic Tankless Water Heater with 0.20 GPM Activation

Name: Instant-Flow® C-Micro® Point-of-Use Thermostatic Tankless Water Heater with 0.20 GPM Activation
Brand: Chronomite, Inc.
SKU: CM Series

In StockThis product is available for quick shipment nationwide.

Find A Representative

Model CM Series

Installation Instructions

Manual CM Series Low Activation Water Heater (pdf)

Submittal

2 available

Model CM Series

Instant-Flow® C-Micro® Point-of-Use Thermostatic Tankless Water Heater with 0.20 GPM Activation

Ideal Applications

Manual, metering, or sensor hand washing faucets
Bar and utility sink

Compact Point-of-Use Thermostatic Tankless Water Heater Features and Benefits

0.2 gallon (0.35 liter) per minute activation
Unlimited hot water
Eliminates scalding
99% energy efficient
Maintains consistent water temperature with digital microprocessor technology
Meets ADA, UL, UPC and IAPMO, ETL
Preset factory temperature of 104° to 160°F (40° to 71°C) with no mixing valve required
Optional field adjustment temperature 104° to 125°F (40° to 52°C) - use Option -ADJ
Vandal resistant rugged cast aluminum housing
Space saving compact size: 6-1/4" (H) x 9-5/8" x 2-3/4" (159 (H) x 244 x 70mm)
Made in America

Chronomite Instant-Flow® C-Micro® - Low Activation models are manufactured to provide reliable point-of-use hot water. There is no pressure and temperature relief valve needed (unless required by code), saving time and money on installation.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual CM Series Low Activation Water Heater (pdf)	Low Activation CM Series Instant-Flow® C-Micro Tankless Point-of-Use Electric Water Heater - includes parts and accessories list	860 KB
Submittals	Submittal CM Series Water Heater (pdf)	Instant-Flow® C-Micro® Tankless, Point-of-Use Electric Water Heater [CM-12L/120, CM-12L/208,CM-12L/240, CM-12L/277, CM-15L/120, CM-15L/208, CM-15L/240, CM-15L/277, CM-20L/120, CM-20L/208, CM-20L/240, CM-20L/277...]	1 MB
Submittals	Hoja de Datos de Calentador de Aqua Series CM (pdf en español)	Calentador de Agua Eléctrico sin Depósito de Activación Baja - 0.20 Galones (0.75 Litros) por Minuto Modelos CM-12L/120, CM-12L/208, CM-12L/240, CM-12L/277, CM-15L/120, CM-15L/208, CM-15L/240, CM-15L/277, CM-20L/120, y otros. (Spanish submittal)	1 MB
Brochures/Flyers	Instant-Flow C-Micro® Water Heater Flyer (pdf)	Instant-Flow C-Micro® Water Heater Flyer (pdf)	2 MB
Brochures/Flyers	Kwik Ship® Brands: Chronomite® (pdf)	Kwik Ship® Brands: Chronomite® (pdf)	603 KB
Brochures/Flyers	Kwik Ship® Brands: Brochure (pdf)	Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay.	3 MB
Brochures/Flyers	Kwik Ship® Brands: Commercial Engineering Approval Form	Kwik Ship® Brands: Commercial Engineering Approval Form	2 MB
Brochures/Flyers	What makes Chronomite Great Brochure (pdf)	What makes Chronomite Great Brochure (pdf)	8 MB
Cross References	Chronomite Kwik Ship® Visual Competitive Cross Ref - Tankless Water Heater (pdf)	Chronomite Kwik-Ship® Tankless Water Heater vs EEMAX, Stielbel Eltron [SR, CM, CMI, CMT, 2095-1] Lit # L1001781 7/2026	269 KB
BIM/CAD/Revit	CM Series Heater (rfa)	Instant-Flow® C-Micro® Tankless, Point-of-Use Electric Water Heater [CM-12L/120, CM-12L/208,CM-12L/240, CM-12L/277, CM-15L/120, CM-15L/208, CM-15L/240, CM-15L/277, CM-20L/120, CM-20L/208, CM-20L/240, CM-20L/277...]	656 KB
BIM/CAD/Revit	CM Series Heater (dwg/zip)	Instant-Flow® C-Micro® Tankless, Point-of-Use Electric Water Heater [CM-12L/120, CM-12L/208,CM-12L/240, CM-12L/277, CM-15L/120, CM-15L/208, CM-15L/240, CM-15L/277, CM-20L/120, CM-20L/208, CM-20L/240, CM-20L/277...]	183 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Dimensions	6-1/4"H x 9-5/8" x 2-3/4”
Kilowatt Output	1.44 to 11.08
Activation Flow Rate	0.20 GPM
Product Features	Ultra-Low Activation Flow Rate of 0.20 GPM
Patent(s)	Patent Pending

Options

Accessories

	Image	Model	Description	Downloads
		-TP	Accessory: Pressure & Temp Relief Valve Assembly

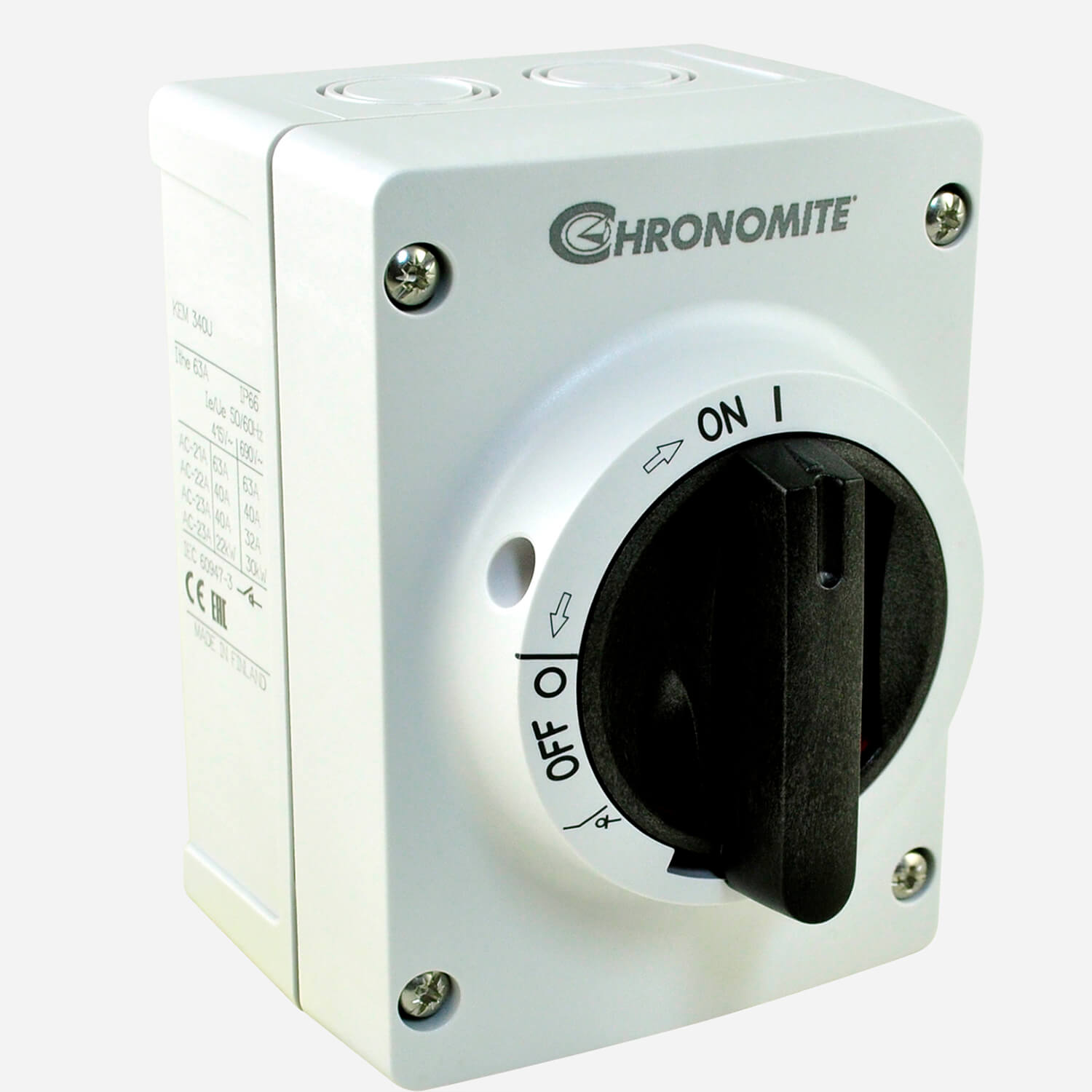

		2095-1	Accessory: Disconnect Switch for SR, CM, CMI, M, M-MM, E Series Water Heaters

Miscellaneous

	Image	Model	Description	Downloads
		-ADJ	Option: Field Adjustable Temperature 104°–125°F
		-C	Kwik-Con™ Conduit Assembly, Metallic
		-C-NM	Kwik-Con™ Conduit Assembly, Non-Metallic
		-N4X	Option: NEMA 4 Stainless Steel Finish Housing
		-NPT08	Option: 1/2" Male NPT
		-P	Option: PA 765 ABS Plastic Housing
		-SS	Option: Satin Finish Stainless Steel Housing
		-SSP	Option: High Polish Finish Stainless Steel Housing

Models

All heaters are single phase powered. | Low Activation Flow Rate: 0.20 Gallon per Minute

Model	Volts	KW	Amps/Ø	90°C Wire	Temp Rise at 0.35 GPM	Temp Rise at 0.50 GPM	Temp Rise at 1.00 GPM	Temp Rise at 1.50 GPM	Temp Rise at 2.00 GPM
CM-12L/120	120	1.44	12	14 AWG	28°F	20°F	10°F	---	---
CM-15L/120	120	1.8	15	14 AWG	35°F	25°F	12°F	---	---
CM-20L/120	120	2.4	20	12 AWG	47°F	33°F	16°F	11°F	---
CM-30L/120	120	3.6	30	10 AWG	70°F	49°F	25°F	16°F	12°F
CM-12L/208	208	2.5	12	14 AWG	49°F	34°F	17°F	11°F	---
CM-15L/208	208	3.12	15	14 AWG	61°F	43°F	21°F	14°F	11°F
CM-20L/208	208	4.16	20	12 AWG	81°F	57°F	28°F	19°F	14°F
CM-30L/208	208	6.24	30	10 AWG	90°F +	85°F	43°F	28°F	21°F
CM-40L/208	208	8.32	40	8 AWG	90°F +	90°F +	57°F	38°F	28°F
CM-12L/240	240	2.88	12	14 AWG	56°F	39°F	20°F	13°F	10°F
CM-15L/240	240	3.6	15	14 AWG	70°F	49°F	25°F	16°F	12°F
CM-20L/240	240	4.8	20	12 AWG	90°F +	66°F	33°F	22°F	16°F
CM-30L/240	240	7.2	30	10 AWG	90°F +	90°F +	49°F	33°F	25°F
CM-40L/240	240	9.6	40	8 AWG	90°F +	90°F +	66°F	44°F	33°F
CM-12L/277	277	3.32	12	14 AWG	65°F	45°F	23°F	15°F	11°F
CM-15L/277	277	4.15	15	14 AWG	81°F	57°F	28°F	19°F	14°F
CM-20L/277	277	5.54	20	12 AWG	90°F +	76°F	38°F	25°F	19°F
CM-30L/277	277	8.32	30	10 AWG	90°F +	90°F +	57°F	38°F	28°F
CM-40L/277	277	11.08	40	8 AWG	90°F +	90°F +	76°F	50°F	38°F

All heaters are single phase powered. | Metric Low Activation Flow Rate: 0.75 Liters per Minute

Model	Volts	KW	Amps/Ø	90°C Wire	Temp Rise at 1.3 LPM	Temp Rise at 1.9 LPM	Temp Rise at 3.8 LPM	Temp Rise at 5.7 LPM	Temp Rise at 7.6 LPM
CM-12L/120	120	1.44	12	14 AWG	16°C	11°C	5°C	---	---
CM-15L/120	120	1.8	15	14 AWG	20°C	14°C	7°C	---	---
CM-20L/120	120	2.4	20	12 AWG	26°C	18°C	9°C	6°C	---
CM-30L/120	120	3.6	30	10 AWG	39°C	27°C	14°C	9°C	7°C
CM-12L/208	208	2.5	12	14 AWG	27°C	19°C	9°C	6°C	---
CM-15L/208	208	3.12	15	14 AWG	34°C	24°C	12°C	8°C	6°C
CM-20L/208	208	4.16	20	12 AWG	45°C	32°C	16°C	11°C	8°C
CM-30L/208	208	6.24	30	10 AWG	50°C+	47°C	24°C	16°C	12°C
CM-40L/208	208	8.32	40	8 AWG	50°C+	50°C+	32°C	21°C	16°C
CM-12L/240	240	2.88	12	14 AWG	31°C	22°C	11°C	7°C	5°C
CM-15L/240	240	3.6	15	14 AWG	39°C	27°C	14°C	9°C	7°C
CM-20L/240	240	4.8	20	12 AWG	50°C+	36°C	18°C	12°C	9°C
CM-30L/240	240	7.2	30	10 AWG	50°C+	50°C+	27°C	18°C	14°C
CM-40L/240	240	9.6	40	8 AWG	50°C+	50°C+	36°C	24°C	18°C
CM-12L/277	277	3.32	12	14 AWG	36°C	25°C	13°C	8°C	6°C
CM-15L/277	277	4.15	15	14 AWG	45°C	31°C	16°C	10°C	8°C
CM-20L/277	277	5.54	20	12 AWG	50°C+	42°C	21°C	14°C	11°C
CM-30L/277	277	8.32	30	10 AWG	50°C+	50°C+	32°C	21°C	16°C
CM-40L/277	277	11.08	40	8 AWG	50°C+	50°C+	40°C	27°C	20°C

Details

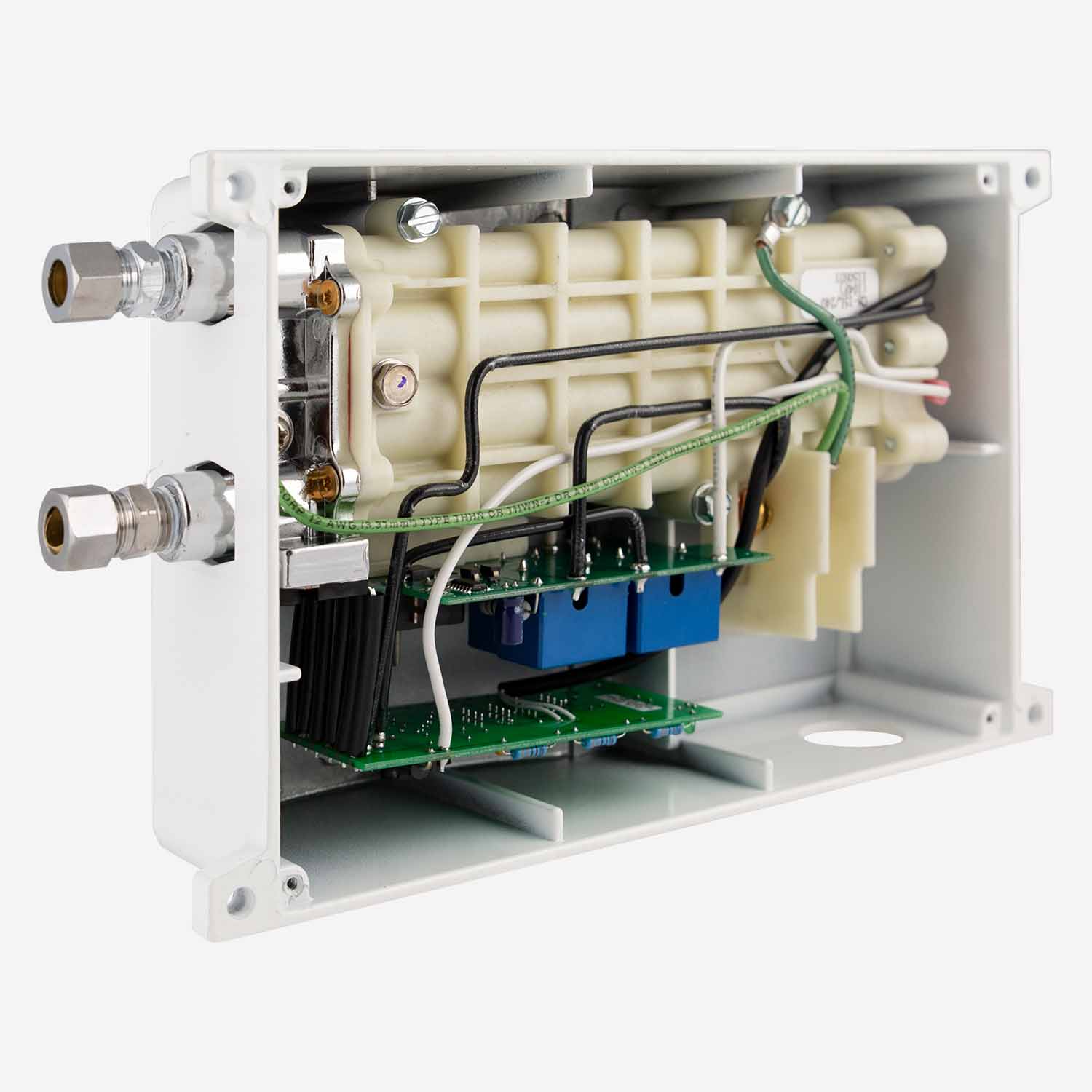

CM Standard Cabinet

6-1/4 (H) x 10-1/8 x 2-3/4"
159 (H) x 257 x 70 mm
Rugged cast aluminum

CM-N4X with NEMA Cabinet

7-7/8 (H) x 11-13/16 x 4-3/4"
200 (H) x 297 x 121 mm
Type 304 Stainless Steel
