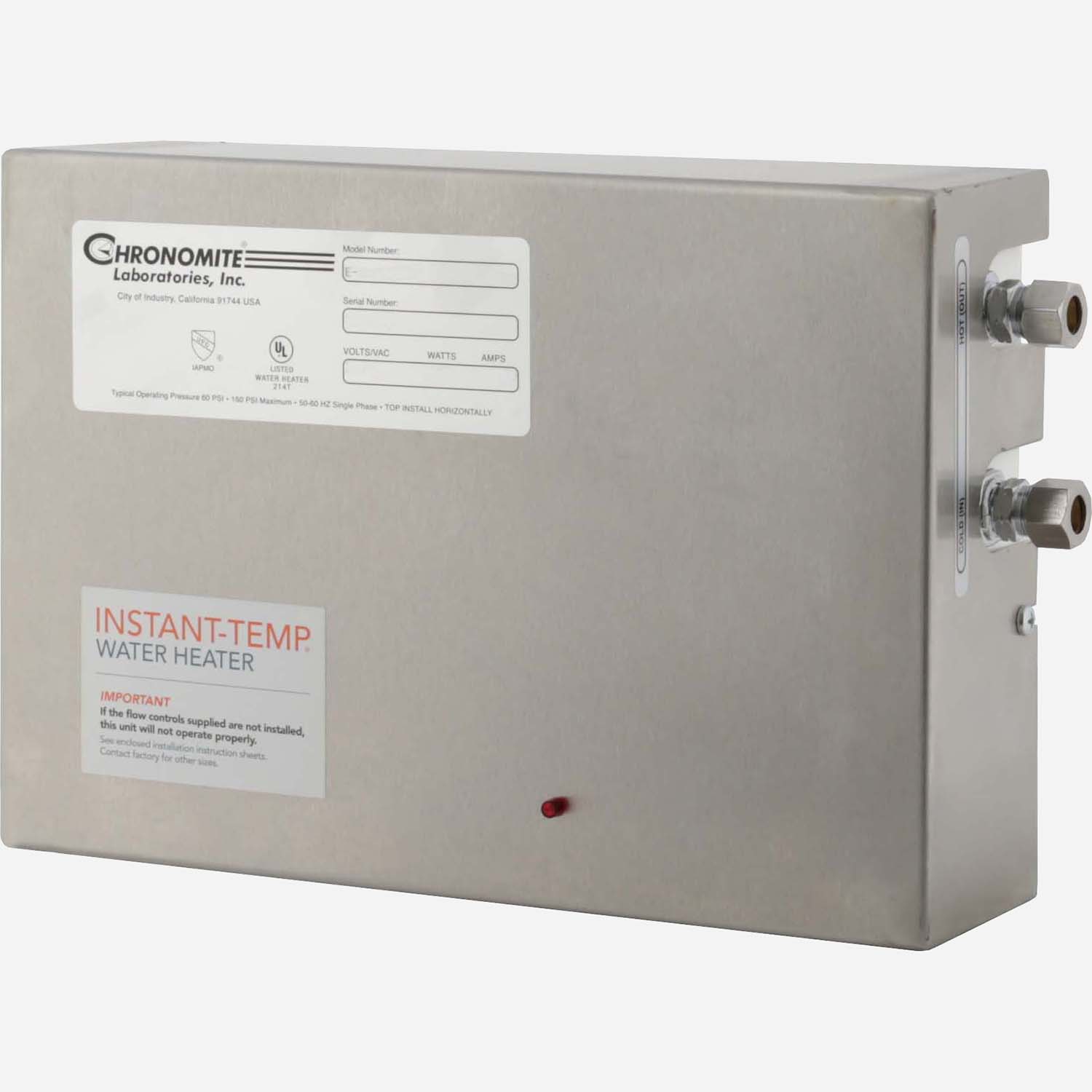

Name: Instant-Temp® Point-of-Use Thermostatic Tankless Water Heater
Brand: Chronomite, Inc.
SKU: E Series

Model E Series

Instant-Temp® Point-of-Use Thermostatic Tankless Water Heater

Ideal Application

Manual, metering, or sensor hand washing faucets
Bar and utility sink
Where tempered de-ionized water is required in point-of-use application

Featires and Benefits

0.35 gallon (1.3 liter) per minute low activation
0.65 gpm (2.5 liters) per minute standard activation
Unlimited hot water
99% energy efficient
Maintains consistent water temperature with digital microprocessor technology
De-ionized water option available
Meets ADA, UL, IAPMO, UPC, CSA
Meets ADA, UL, UPC and IAPMO, ETL.
Compact 7-5/16 height x 10-3/4 x 2-3/4" (186 x 273 x 70 mm) size
Eliminates scalding – preset factory temperature of 104° to 160°F (40° to 71°C) with no mixing valve required
Maintains consistent water temperature with digital microprocessor technology
Made in America

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual Standard Activation Instant-Temp Heater (pdf)	Manual Standard Activation Instant-Temp Heater (pdf)	208 KB
Submittals	Submittal Low Activation, Instant-Temp Heater	Low Activation, Instant-Temp Heater including E-46L/208, E-46L/240, E-46L/277, E-60L/208, E-60L/240, E-60L/277, E-70L/208, E-70L/240, E-70L/277, E-80L/208, E-80L/240, E-80L/277, E-90L/240, E-90L/277	740 KB
Submittals	Submittal Standard Activation, Instant-Temp Heater	Standard Activation, Instant-Temp Heater including E-46S/208, E-46S/240, E-46S/277, E-60S/208, E-60S/240, E-60S/277, E-70S/208, E-70S/240, E-70S/277, E-80S/208, E-80S/240, E-80S/277, E-90S/240, E-90S/277	713 KB
Brochures/Flyers	What makes Chronomite Great Brochure (pdf)	What makes Chronomite Great Brochure (pdf)	8 MB
Brochures/Flyers	Chronomite General Brochure (pdf)	Chronomite General Brochure (pdf)	5 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Dimensions	7-5/16"H x 10-3/4" x 2-3/4"
Product Features	De-Ionized Water Option Available
Activation Flow Rate	0.35 GPM, 0.65 GPM
Kilowatt Output	4.60 to 9.00

Options

Accessories

	Image	Model	Description	Downloads
		-R	Accessory: Digital Temperature Remote
		-TP	Accessory: Pressure & Temp Relief Valve Assembly
		2095-1	Accessory: Disconnect Switch for SR, CM, CMI, M, M-MM, E Series Water Heaters

Miscellaneous

	Image	Model	Description	Downloads
		-DI	Option: De-Ionized
		-EW	Option: Eye Wash Factory Preset 84°F (for E-80 or E-90 models)
		-SS	Option: Satin Finish Stainless Steel Housing
		-SSP	Option: High Polish Finish Stainless Steel Housing

Models

Chart set shown below is for 0.35 Gallon (1.30 Liters) per Minute Low Activation. Please see submittal for 0.65 Gallon (2.5 Liters) per Minute Standard Activation

All heater are single phase powered. | Lower Activation Flow Rate: 0.35 Gallon per Minute

Model	Volts	KW	Amps/Ø	90°C Wire	Temp Rise at 0.35 GPM	Temp Rise at 0.50 GPM	Temp Rise at 1.00 GPM	Temp Rise at 1.50 GPM	Temp Rise at 2.00 GPM
E-46L/208	208	4.60	22	10 AWG	90°F +	63°F	31°F	21°F	---
E-60L/208	208	6.00	29	10 AWG	90°F +	82°F	41°F	27°F	20°F
E-70L/208	208	7.00	34	8 AWG	90°F +	90°F +	48°F	32°F	24°F
E-80L/208	208	8.00	38	8 AWG	90°F +	90°F +	55°F	36°F	27°F
E-46L/240	240	4.60	19	12 AWG	90°F +	63°F	31°F	21°F	---
E-60L/240	240	6.00	25	10 AWG	90°F +	82°F	41°F	27°F	20°F
E-70L/240	240	7.00	29	10 AWG	90°F +	90°F +	48°F	32°F	24°F
E-80L/240	240	8.00	33	8 AWG	90°F +	90°F +	55°F	36°F	27°F
E-90L/240	240	9.00	38	8 AWG	90°F +	90°F +	61°F	41°F	31°F
E-46L/277	277	4.60	17	12 AWG	90°F +	63°F	31°F	21°F	---
E-60L/277	277	6.00	22	10 AWG	90°F +	82°F	41°F	27°F	20°F
E-70L/277	277	7.00	25	10 AWG	90°F +	90°F +	48°F	32°F	24°F
E-80L/277	277	8.00	29	10 AWG	90°F +	90°F +	61°F	36°F	27°F
E-90L/277	277	9.00	32	8 AWG	90°F +	90°F +	61°F	41°F	31°F

All heaters are single phase powered. | Metric Low Activation Flow Rate: 1.30 Liters per Minute

Model	Volts	KW	Amps/Ø	90°C Wire	Temp Rise at 1.3 LPM	Temp Rise at 1.9 LPM	Temp Rise at 3.79 LPM	Temp Rise at 5.7 LPM	Temp Rise at 7.6 LPM
E-46L/208	208	4.60	22	10 AWG	50°C +	35°C	17°C	12°C	---
E-60L/208	208	6.00	29	10 AWG	50°C +	46°C	23°C	15°C	11°C
E-70L/208	208	7.00	34	8 AWG	50°C +	50°C +	27°C	18°C	13°C
E-80L/208	208	8.00	38	8 AWG	50°C +	50°C +	30°C	20°C	15°C
E-46L/240	240	4.60	19	12 AWG	50°C +	35°C	17°C	12°C	---
E-60L/240	240	6.00	25	10 AWG	50°C +	46°C	23°C	15°C	11°C
E-70L/240	240	7.00	29	10 AWG	50°C +	50°C +	27°C	18°C	13°C
E-80L/240	240	8.00	33	8 AWG	50°C +	50°C +	30°C	20°C	15°C
E-90L/240	240	9.00	38	8 AWG	50°C +	50°C +	34°C	23°C	17°C
E-46L/277	277	4.60	17	12 AWG	50°C +	35°C	17°C	12°C	---
E-60L/277	277	6.00	22	10 AWG	50°C +	46°C	23°C	15°C	11°C
E-70L/277	277	7.00	25	10 AWG	50°C +	50°C +	27°C	18°C	13°C
E-80L/277	277	8.00	29	10 AWG	50°C +	50°C +	30°C	20°C	15°C
E-90L/277	277	9.00	32	8 AWG	50°C +	50°C +	34°C	23°C	17°C
