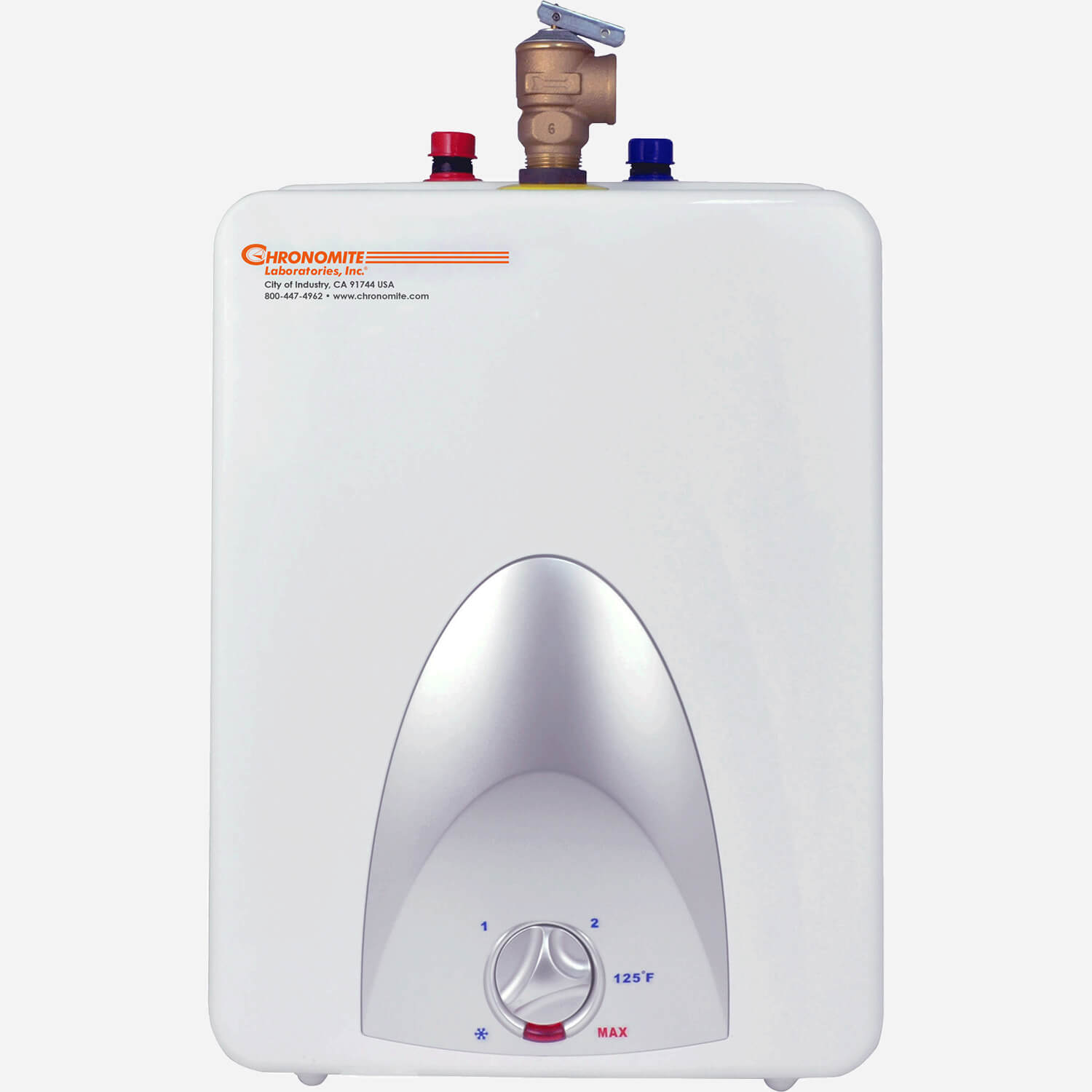

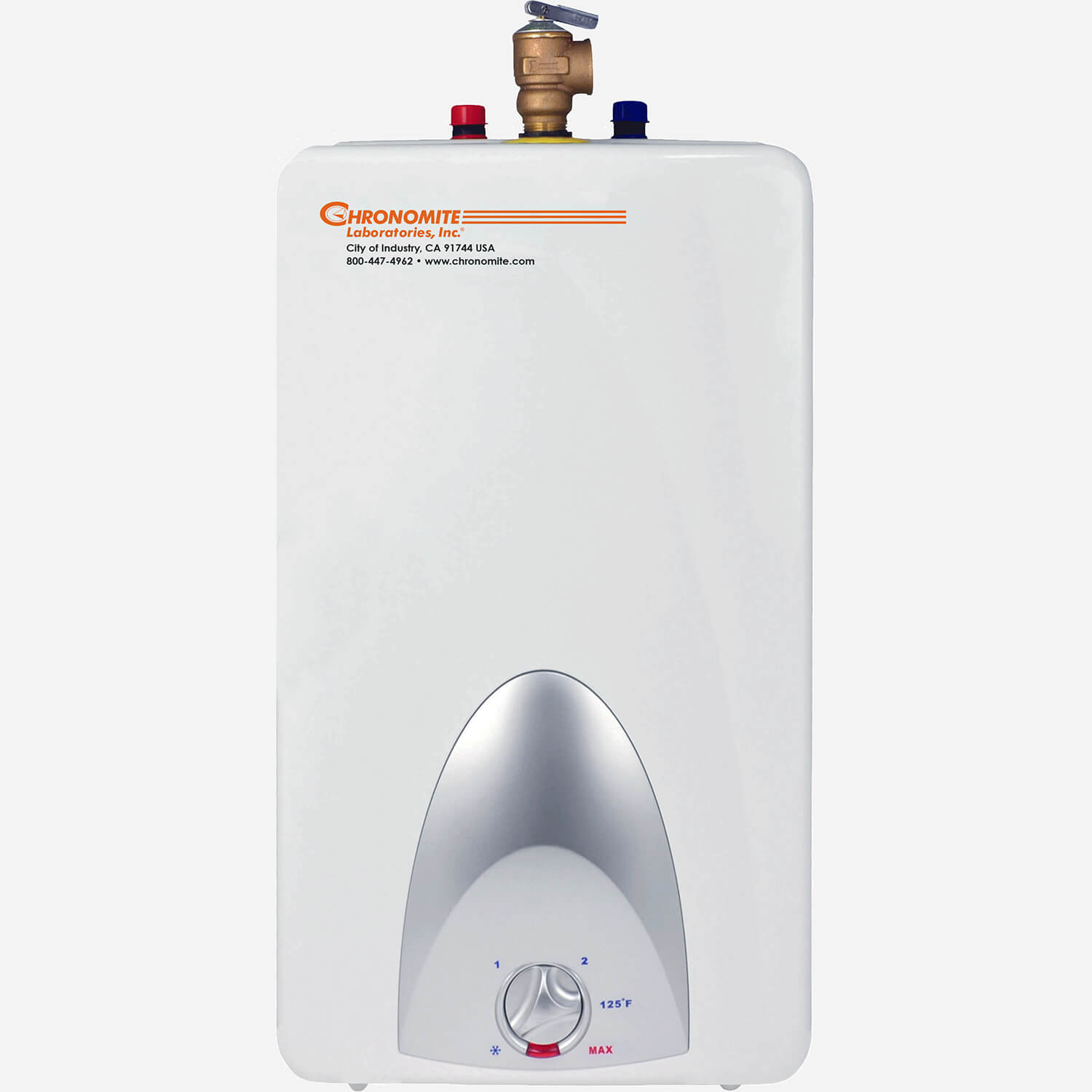

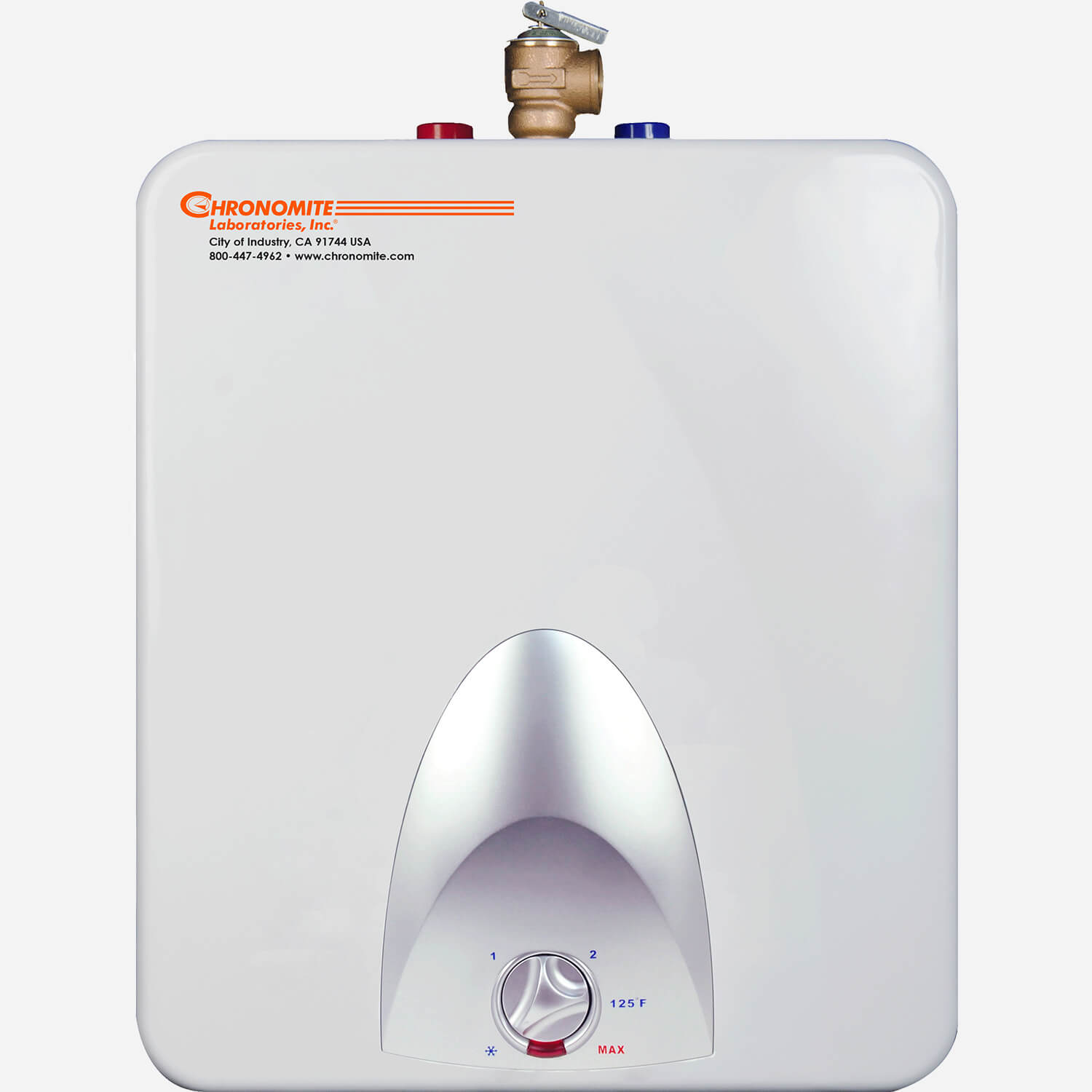

Mini Tank Water Heater
Small Electric Water Heater Applications
- Single lavatory
- Modular trailer
- Schools and institutional facilities
- Bathrooms
- Medical offices
- Kitchens
- Garages
- Commercial/warehouses
- Any under-sink application
Features and Benefits
- Easy installation
- Compact size
- Power plug outlet 110/120 volts
- Can replace traditional central hot water heaters
- Adjustable temperature 50° to 140°F (10° to 60°C)

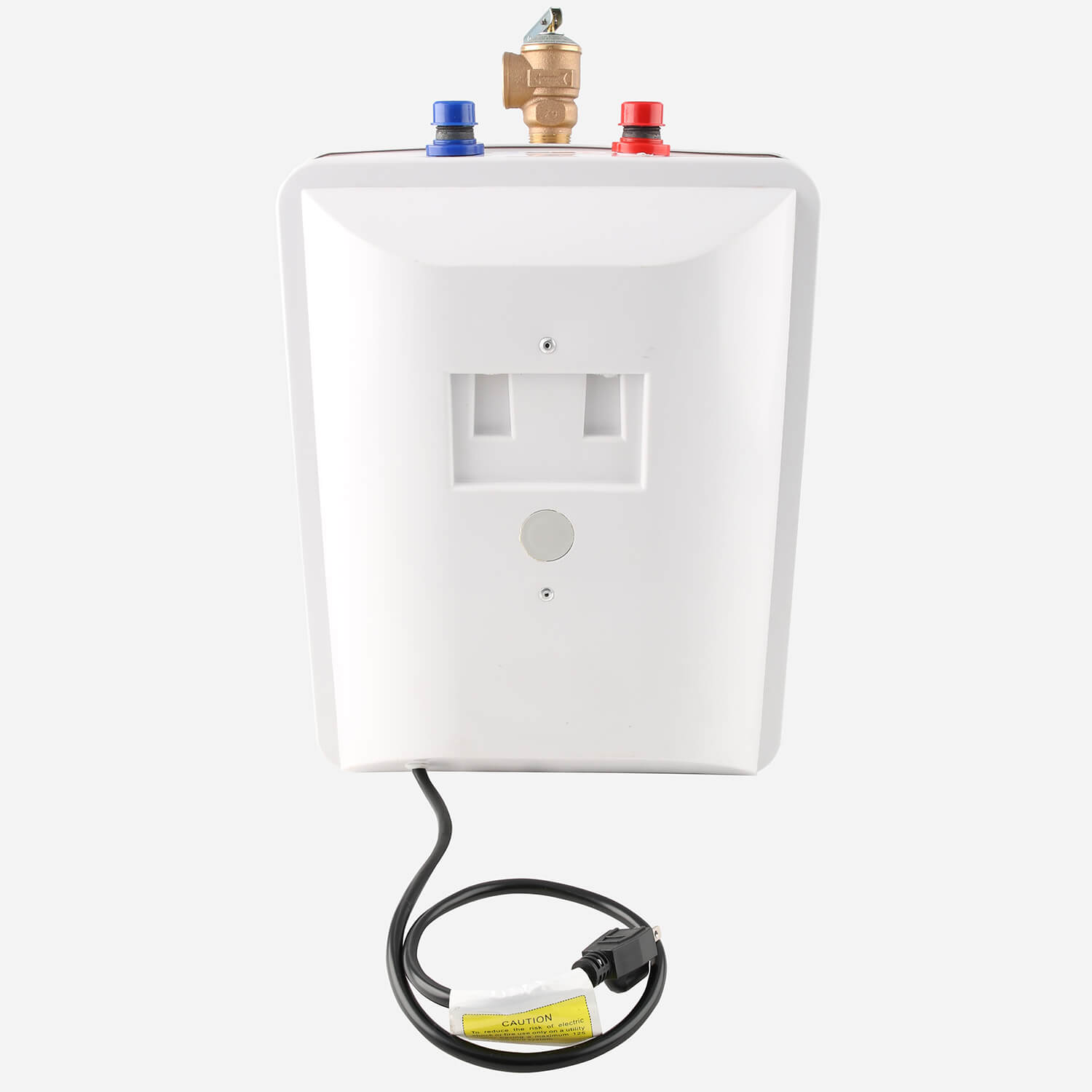

- Wall or floor mounting hardware included
- Pressure/Temperature relief valve included
- Temperature sensor shuts off the unit when it is above the 140°F limit
Mini Tank Small Electric Water Heater Uses
Independent Use a Chronomite Mini Tank for sinks that do not have hot water. Locate the Chronomite Mini Tank close to the point of use, so hot water is delivered quickly. Plumb to one sink or multiple sinks in the same area.
In-line Connection at the point of use eliminates the wait for hot water from the central water heater. Plumb in line with the central water heater. The Mini Tank is filled with hot water from the central water heater, conserving water and energy.
Optionally Available
A thermostatic mixing valve is optionally available through Chronomite. The valve is ASSE 1070 compliant, rated at 4.5 gallons (17 liters) per minute at 45 PSI (310 kPa).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Installation/Operation Manual CMT Series Heaters | 1 MB | |||
| | CMT-1.3, CMT-2.5, CMT-4.0, CMT-6.0 Mini Tank Water Heaters | 150 KB | |||
 | | Mini Tank Heater CMT-1.3 | 1.3 gallons (4.92 liters); CMT-2.5 | 2.5 gallons (9.46 liters); CMT-4.0 | 4.0 gallons (15.14 liters); CMT-6.0 | 6.0 gallons (22.71 liters) | 0 | 532 KB | ||
| | Mini Tank Heater CMT-1.3 | 1.3 gallons (4.92 liters); CMT-2.5 | 2.5 gallons (9.46 liters); CMT-4.0 | 4.0 gallons (15.14 liters); CMT-6.0 | 6.0 gallons (22.71 liters) | 0 | 838 KB | ||
| | Calentador de Agua con Minitanque Modelos CMT-1.3, CMT-2.5, CMT-4.0, CMT-6.0 (Spanish submittal) | 0 | 568 KB | ||
| | Mini Tank Water Heater Flyer (pdf) | 0 | 397 KB | ||
| | What makes Chronomite Great Brochure (pdf) | 0 | 8 MB | ||
| | Chronomite General Brochure (pdf) | 0 | 5 MB | ||
| | Why Chronomite Laboratories Is a Perfect Match for Modular Buildings | 0 | 2 MB | ||
 | | CMT Series - Mini Tank Electric Water Heater (video) | 0 | 135 KB |
Specifications
| Voltage | 110/120 Volts |
| Compliances | UL Listed |
| Dimensions | 13-1/2"H x 11" x 10", 15-1/2"H x 11-3/4" x 10-3/8", 20-1/4"H x 11-3/4" x 10-3/8, 23"H x 15-3/4" x 15-1/2" |
| Kilowatt Output | 1.44 |
| Brand | Acorn ConTrols® Inside |
Options
Models
TECHNICAL DATAVoltage (A/C)- 110-120 | Wattage- 1.440 Kilowatt | Water Connection - 1/2" NPTMaximum Water Pressure - 150 psi (1034 kPa) | Temperature Range - 50° to 140°F (10° to 60°C)

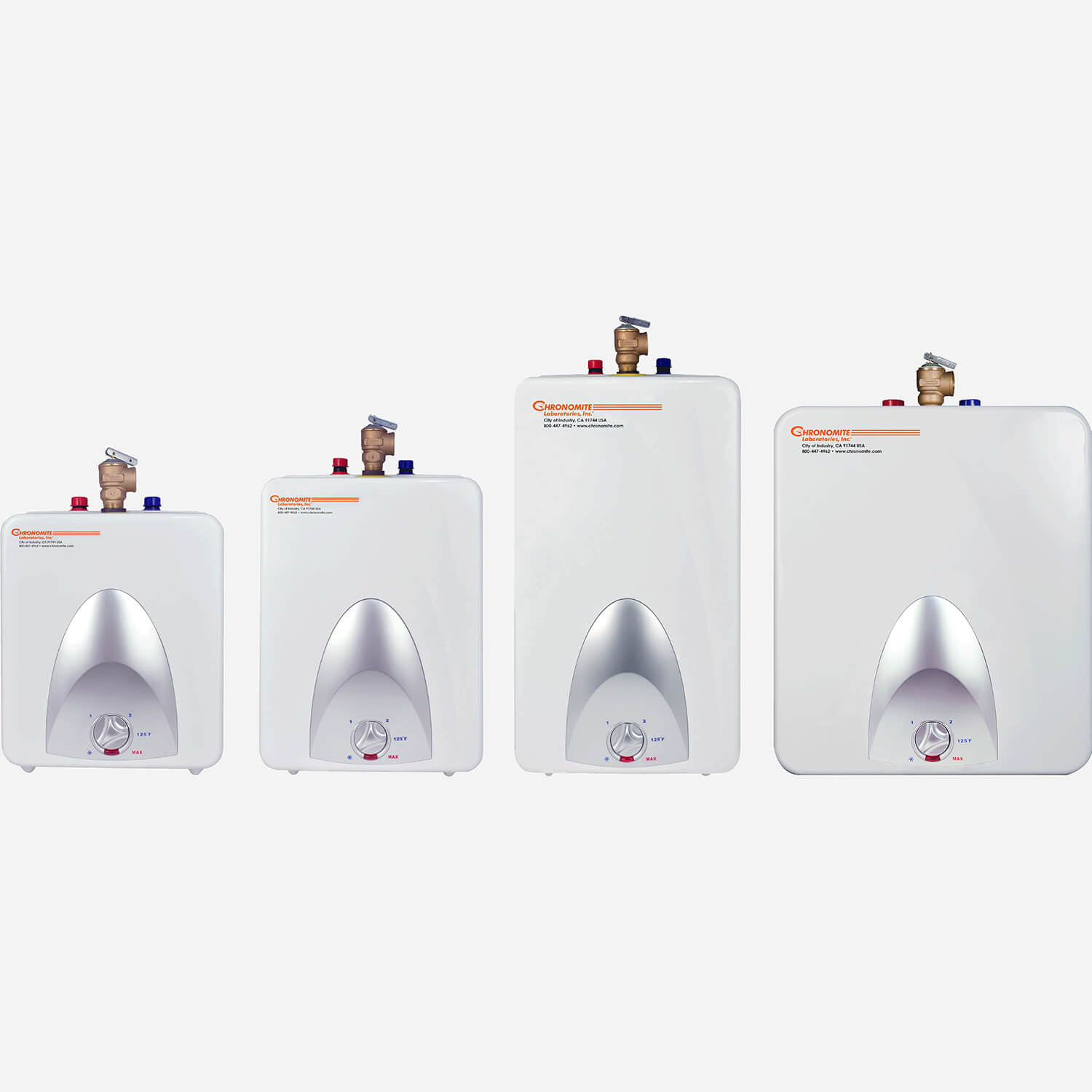

Typical models are shown below
CMT-1.3 Small Electric Water Heater 1.3 gallons (4.92 liters) 15 lbs (6.80 kg) empty weight A dim 10" (254 mm) B dim 2.25" (57 mm) C dim 11" (279 mm) D dim 4" (102 mm) E dim 6" (152 mm) F dim 13.5" (343 mm) G dim 12.5" (318 mm) H dim 2.5" (64 mm)
CMT-2.5 Small Electric Water Heater 2.5 gallons (9.46 liters) 18 lbs (8.16 kg) empty weight A dim 10.375" (264 mm) B dim 2.75" (700 mm) C dim 11.75" (299 mm) D dim 4" (102 mm) E dim 6" (152 mm) F dim 15.5" (394 mm) G dim 14.5" (368 mm) H dim 2.5" (64 mm)
CMT-4.0 Small Electric Water Heater 4.0 gallons (15.14 liters) 22 lbs (9.98 kg) empty weight A dim 10.375" (264 mm) B dim 2.75" (700 mm) C dim 11.75" (299 mm) D dim 4" (102 mm) E dim 6" (152 mm) F dim 20.25" (514 mm) G dim 19.25" (489 mm) H dim 2.5" (64 mm)
CMT-6.0 Small Electric Water Heater 6.0 gallons (22.71 liters) 26 lbs (11.79 kg) empty weight A dim 15.5" (394 mm) B dim 2.75" (700 mm) C dim 15.75" (400 mm) D dim 4" (102 mm) E dim 6" (152 mm) F dim 23" (584 mm) G dim 18" (457 mm) H dim 2.5" (64 mm)
