Name: Instant-Flow® FlowSecure™ Water Heater
Brand: Chronomite, Inc.
SKU: CMX Series

Model CMX Series

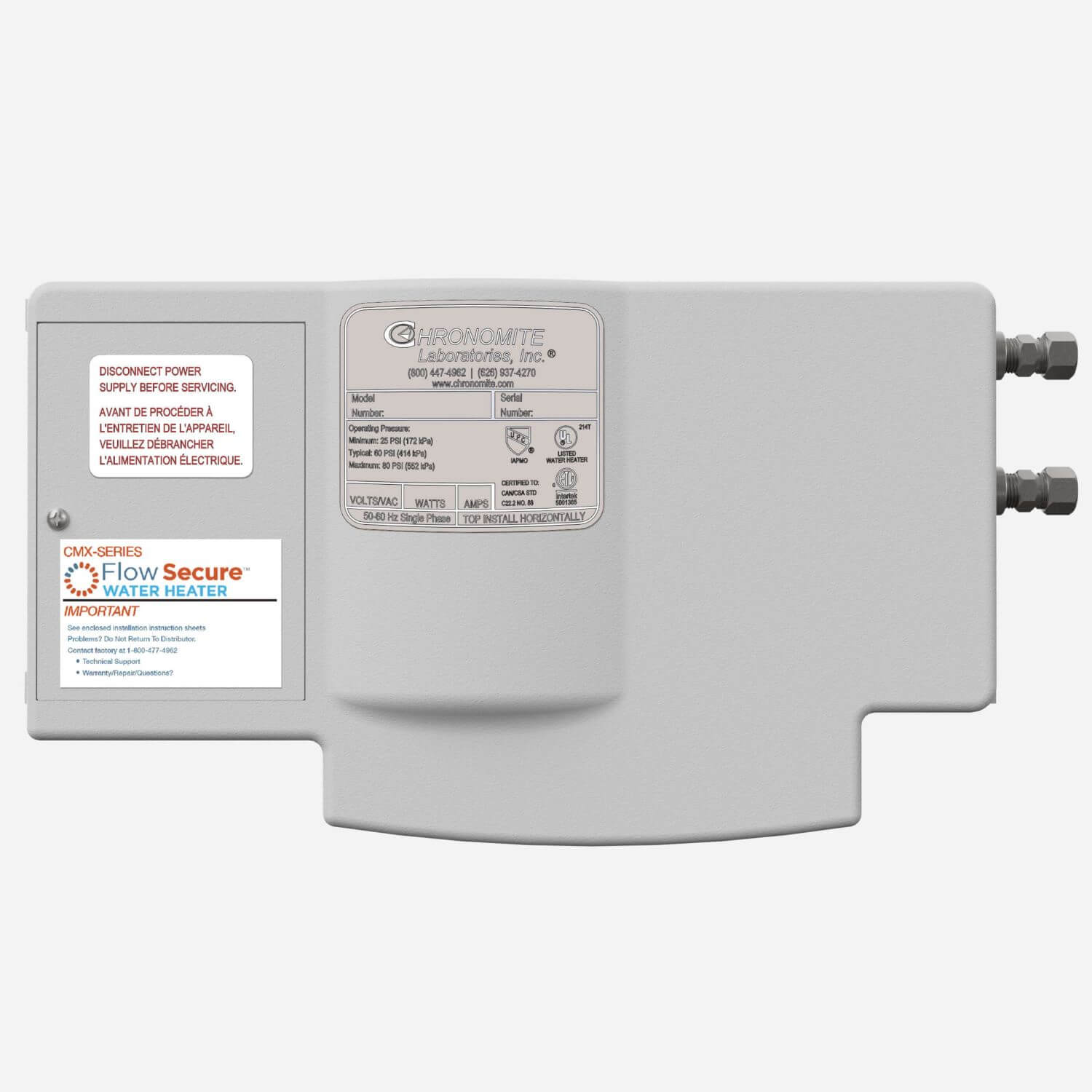

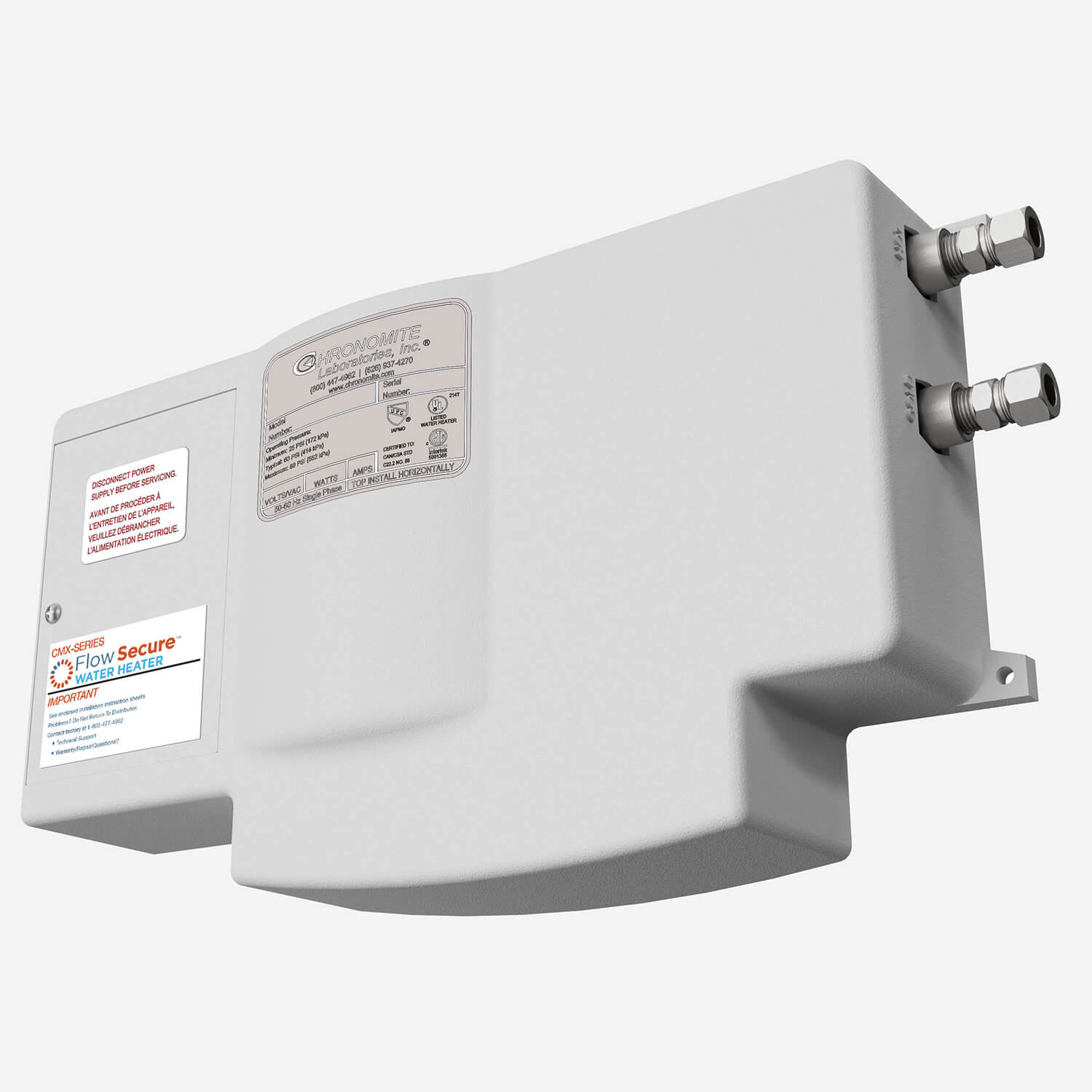

Instant-Flow® FlowSecure™ Water Heater

PRODUCT FEATURES

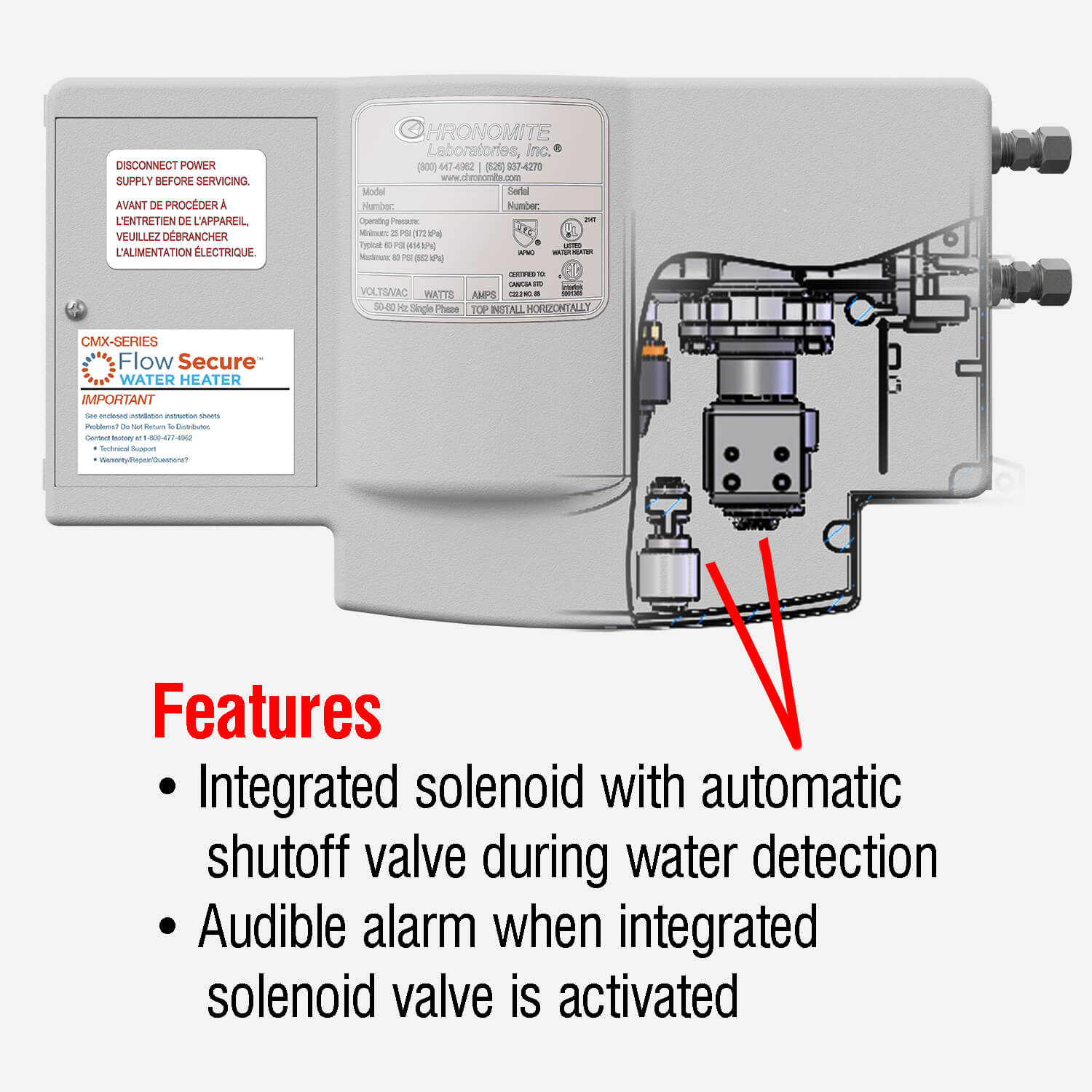

Heater plus integrated solenoid valve with automatic shutoff during leak detection.
Audible alarm during leak detection with manual reset
10 VDC Outputs for Building Maintenance Systems (BMS) to Monitor
Uses a digital microprocessor for temperature control, Ultra quick response times for temperature variations- 120 times per second. Microprocessor use is the most energy efficient means of heating water
Unlimited hot water
Ideal for sensor/hands-free faucets with the 104°F (40°C) factory preset setting
Ultra Low Flow Activation - 0.20 gallon (0.75 liters) per minute
Saves water and energy - 99% energy efficient
Meet all CAL GREEN low flow requirements
Vandal resistant rugged cast aluminum housing
Space saving compact size:

Height: 8-3/16" (208 mm)
Length: 15-1/16" (383 mm)
Depth: 2-3/4" (70 mm)

Meets applicable building codes including: ADA, UL, IAPMO, UPC, CSA.
Environmentally friendly
Made in the U.S.A.
Patent Pending
Adjustable Water Temperature Settings: 104-125°F (40-52°C)
Optional Preset Temperatures available including:

104°F (40°C)
110°F (43°C) meets ADA
120°F (49°C) meets health code
Other temperatures may be specified upon request

Chronomite Instant-Flow® FlowSecure™- Low Activation models are manufactured to provide reliable point-of-use hot water. There is no pressure and temperature relief valve needed (unless required by code), saving time and money on installation.

Housing is fabricated from rugged cast aluminum alloy.

Element assembly is fabricated from Celcon plastic.

Heating coils are nichrome.

Faucet flow controls are supplied with each unit. 3/8" compression fittings are supplied (standard). Optional 1/2" male NPT water connections available.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual CMX Series Heater (pdf)	Instant-Flow® FlowSecure™ Water Heater	973 KB
Submittals	Submittal CMX-LF Heater (pdf)	Instant-Flow® FlowSecure™ Water Heater - Low Activation®	1 MB
Brochures/Flyers	What makes Chronomite Great Brochure (pdf)	What makes Chronomite Great Brochure (pdf)	8 MB
Brochures/Flyers	CMX Flow Secure Brochure (pdf)	CMX Flow Secure Brochure (pdf)	1 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Features	Ultra-Low Activation Flow Rate of 0.20 GPM, Audible alarm during leak detection with manual reset, 10 VDC Outputs for Building Maintenance Systems (BMS) to Monitor
Dimensions	8-3/16" x 15-1/16" x 2-3/4"
Kilowatt Output	1.44 to 11.08
Activation Flow Rate	0.20 GPM

Options

Accessories

	Image	Model	Description	Downloads
		-TP	Accessory: Pressure & Temp Relief Valve Assembly
		2095-1	Accessory: Disconnect Switch for SR, CM, CMI, M, M-MM, E Series Water Heaters

Miscellaneous

	Image	Model	Description	Downloads
		-C	Kwik-Con™ Conduit Assembly, Metallic
		-C-NM	Kwik-Con™ Conduit Assembly, Non-Metallic
		-NPT08	Option: 1/2" Male NPT
		AP-12	Option: ASSE 1070-Compliant Mixing Valve Assembly

Models

All heaters are single phase powered. | Activation Flow Rate: 0.20 Gallon per Minute

Model	Amps/Ø	Volts	Watts	90°C Wire	Temp Rise at 0.35 GPM	Temp Rise at 0.50 GPM	Temp Rise at 1.00 GPM	Temp Rise at 1.50 GPM	Temp Rise at 2.00 GPM
CMX-12L/120	12	120	1440	14 AWG	28°F	20°F	---	---	---
CMX-15L/120	15	120	1800	14 AWG	35°F	25°F	---	---	---
CMX-20L/120	20	120	2400	12 AWG	47°F	33°F	---	---	---
CMX-30L/120	30	120	3600	10 AWG	70°F	49°F	25°F	---	---
CMX-12L/208	12	208	2500	14 AWG	49°F	34°F	---	---	---
CMX-15L/208	15	208	3120	14 AWG	61°F	43°F	21°F	---	---
CMX-20L/208	20	208	4160	12 AWG	81°F	57°F	28°F	---	---
CMX-30L/208	30	208	6240	10 AWG	90°F+	85°F	43°F	28°F	21°F
CMX-40L/208	40	208	8320	8 AWG	90°F+	90°F+	57°F	38°F	28°F
CMX-12L/240	12	240	2880	14 AWG	56°F	39°F	20°F	---	---
CMX-15L/240	15	240	3600	14 AWG	70°F	49°F	25°F	---	---
CMX-20L/240	20	240	4800	12 AWG	90°F+	66°F	33°F	22°F	---
CMX-30L/240	30	240	7200	10 AWG	90°F+	90°F+	49°F	33°F	25°F
CMX-40L/240	40	240	9600	8 AWG	90°F+	90°F+	66°F	44°F	33°F
CMX-12L/277	12	277	3320	14 AWG	65°F	45°F	23°F	---	---
CMX-15L/277	15	277	4150	14 AWG	81°F	57°F	28°F	---	---
CMX-20L/277	20	277	5540	12 AWG	90°F+	76°F	38°F	25°F	---
CMX-30L/277	30	277	8310	10 AWG	90°F+	90°F+	57°F	38°F	28°F
CMX-40L/277	40	277	11080	8 AWG	90°F+	90°F+	76°F	50°F	38°F

All heaters are single phase powered. | Metric Activation Flow Rate: 0.75 Liters per Minute

Model	Amps/Ø	Volts	Watts	90°C Wire	Temp Rise at 1.30 LPM	Temp Rise at 2.00 LPM	Temp Rise at 4.00 LPM	Temp Rise at 6.00 LPM	Temp Rise at 8.0 LPM
CMX-12L/120	12	120	1440	14 AWG	16°C	10°C	---	---	---
CMX-15L/120	15	120	1800	14 AWG	20°C	13°C	---	---	---
CMX-20L/120	20	120	2400	12 AWG	27°C	17°C	---	---	---
CMX-30L/120	30	120	3600	10 AWG	40°C	26°C	13°C	---	---
CMX-12L/208	12	208	2500	14 AWG	28°C	18°C	---	---	---
CMX-15L/208	15	208	3100	14 AWG	34°C	22°C	11°C	---	---
CMX-20L/208	20	208	4160	12 AWG	46°C	30°C	15°C	---	---
CMX-30L/208	30	208	6240	10 AWG	50°C+	45°C	22°C	15°C	11°C
CMX-40L/208	40	208	8320	8 AWG	50°C+	50°C+	30°C	20°C	15°C
CMX-12L/240	12	240	2880	14 AWG	32°C	21°C	10°C	---	---
CMX-15L/240	15	240	3600	14 AWG	40°C	26°C	13°C	---	---
CMX-20L/240	20	240	4800	12 AWG	50°C+	34°C	17°C	11°C	---
CMX-30L/240	30	240	7200	10 AWG	50°C+	50°C+	26°C	17°C	13°C
CMX-40L/240	40	240	9600	8 AWG	50°C+	50°C+	34°C	23°C	17°C
CMX-12L/277	12	277	3320	14 AWG	37°C	24°C	12°C	---	---
CMX-15L/277	15	277	4150	14 AWG	46°C	30°C	15°C	---	---
CMX-20L/277	20	277	5540	12 AWG	50°C+	40°C	20°C	13°C	---
CMX-30L/277	30	277	8310	10 AWG	50°C+	50°C+	30°C	20°C	15°C
CMX-40L/277	40	277	11080	8 AWG	50°C+	50°C+	40°C	27°C	20°C
